We provide virtual sessions to run the machine efficiently. We also provide complete technical support, installation, and virtual training for free upon receiving the machine.
|
45 Kg/Hr
Max. extrusion output
|
10 HP
AC Motor with Frequency Drive
|
10 ft
Can make up to 10 feet beam
|
80
Screw RPM
|

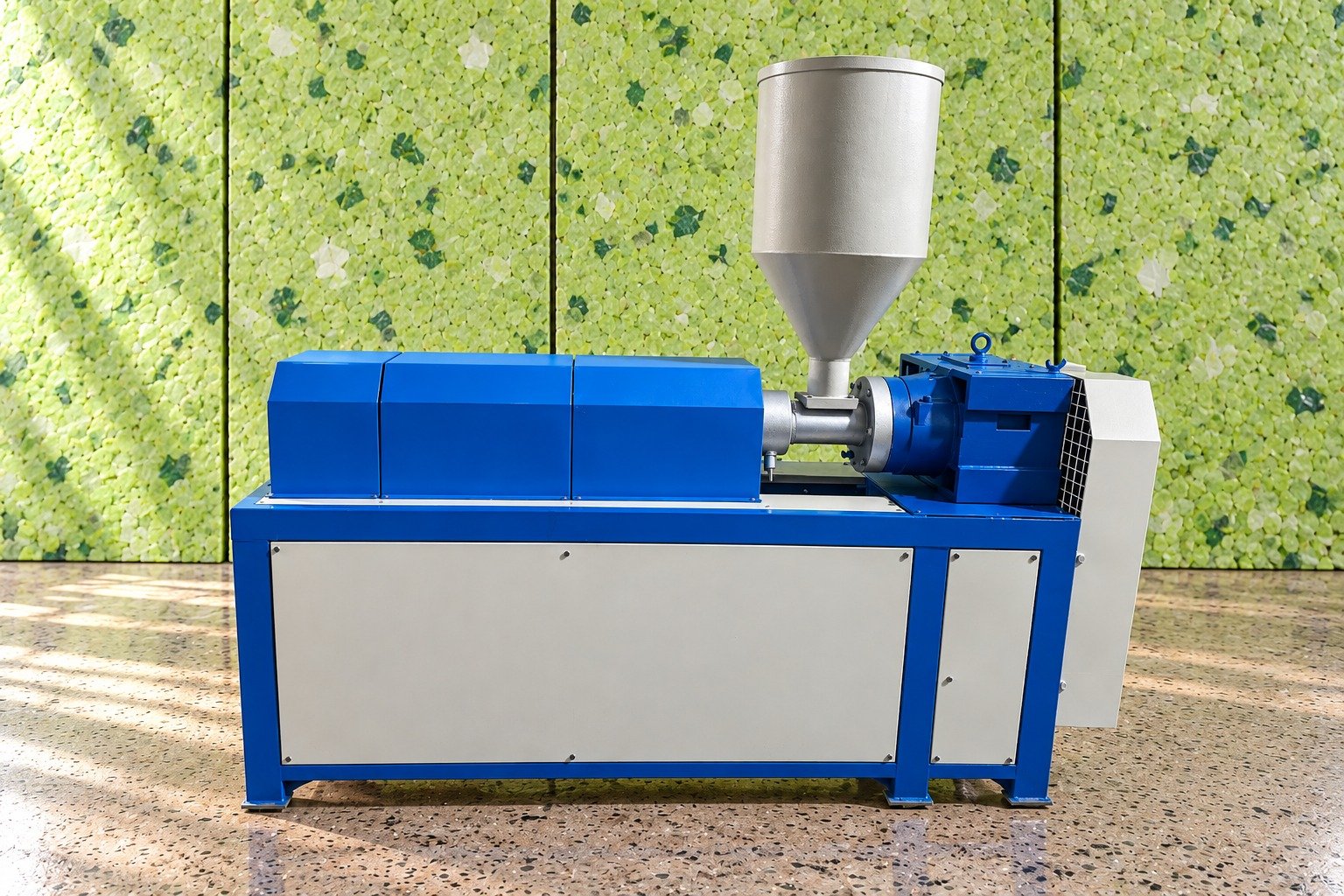

| Smooth screw extruder 1820 mm / 50D / 10 HP Smooth Screw extruder – HDPE/PP/LDPE/PS/ABS/PLA |
Beam length Size to be manufactured: Up to 10ft Length. Can make up to 10 feet beam. |
| Screw L- 1820 mm, OD – 50mm. Screw RPM: 80. |
Barrel L- 1750 mm, OD-110mm, ID- 50mm |
| Extrusion output Max. Extrusion Output: 45 Kg/Hr. |
Main motor AC Motor 10HP With Frequency Drive |
| Barrel heating 4 Heating Zones (Ceramic Band Heater with Energy Saving). Barrel Heating Loads: 5 kW. |
Gear reducer Extrusion Gearbox with heavy-duty thrust bearing |
| Screw barrel material EN 41B Nitro alloy steel duly gas nitride |
Control Process Control Panel synchronized by one master control. Advanced extrusion control with optimized workflow to fill moulds. |
| Safety Consist of additional safety features. Phase Synchronizer and Over Voltage Protection as per CE Standard. |
Support and shipping Free technical support, installation, and virtual training. International Shipping is Available via sea till the seaport in your region. |
| Specification | Detail |
|---|---|
| Material to be processed | Recycled HDPE/PP/LDPE/PS Grinded Scrap |
| Size to be manufactured | Up to 10ft Length |
| Screw RPM | 80 |
| Screw size | L- 1820 mm, OD – 50mm |
| Barrel size | L- 1750 mm, OD-110mm, ID- 50mm |
| Max. Extrusion Output | 45 Kg/Hr. |
| Control | Advanced extrusion control with optimized workflow to fill moulds |
| Total Connected Load | 15* kW (Approx.) |
| Specification | Detail |
|---|---|
| Barrel type | Smooth Feed Barrier type high-speed design |
| Screw barrel material | EN 41B Nitro alloy steel duly gas nitride |
| Gear reducer | Extrusion Gearbox with heavy-duty thrust bearing |
| Main motor | AC Motor 10HP With Frequency Drive |
| Barrel heating zones | 4 Heating Zones (Ceramic Band Heater with Energy Saving) |
| Barrel heating loads | 5 kW. |
| Hopper loader | M.S. Fabricated Hopper |
| Structure | MS fabricated heavy-duty structure made from angles, and channels and Covered with sheet |
| Specification | Detail |
|---|---|
| Temp. Controllers | PID Controller with Autotuning & dual display |
| MCB | Reputed make MCB in line with every heating zone supply |
| Other Electrical Outfits | Amp. Meter, Contactors, Synchronization card, standard cord wiring with PVC conduct channel framing. |
| Safety | Phase Synchronizer and Over Voltage Protection as per CE Standard. |
| Specification | Detail |
|---|---|
| Machine size | 7 X 3 X 6 FT |
| Screw size | 50 X 1820 MM |
| Material | EN 41B MOSCOW |
| Barrel | OD 100 ID 50 |
| Heating zone | 6 heating zone with 4 PID controllers |
| Heater rating | 1.8 KW |
| Screw rotation speed | Adjustable |
| AC drive | 10 HP: ABB |
| Motor | 10 HP (ABB BRAND) |
| Gearbox | Heavy extruder gearbox |
| Output gearbox torque | 149 NM |
| Power supply | 3 PHASE 415 VOLT |
| Power load | 15 KW |
| Output | 45 KG/HR |
| Material | HDPE, LDPE, PP, HIPS, PS |
| Machine weight | 1200 KG |
| Working area | 17 X 5 FT |
| Max. speed | Up to 80 RPM |
