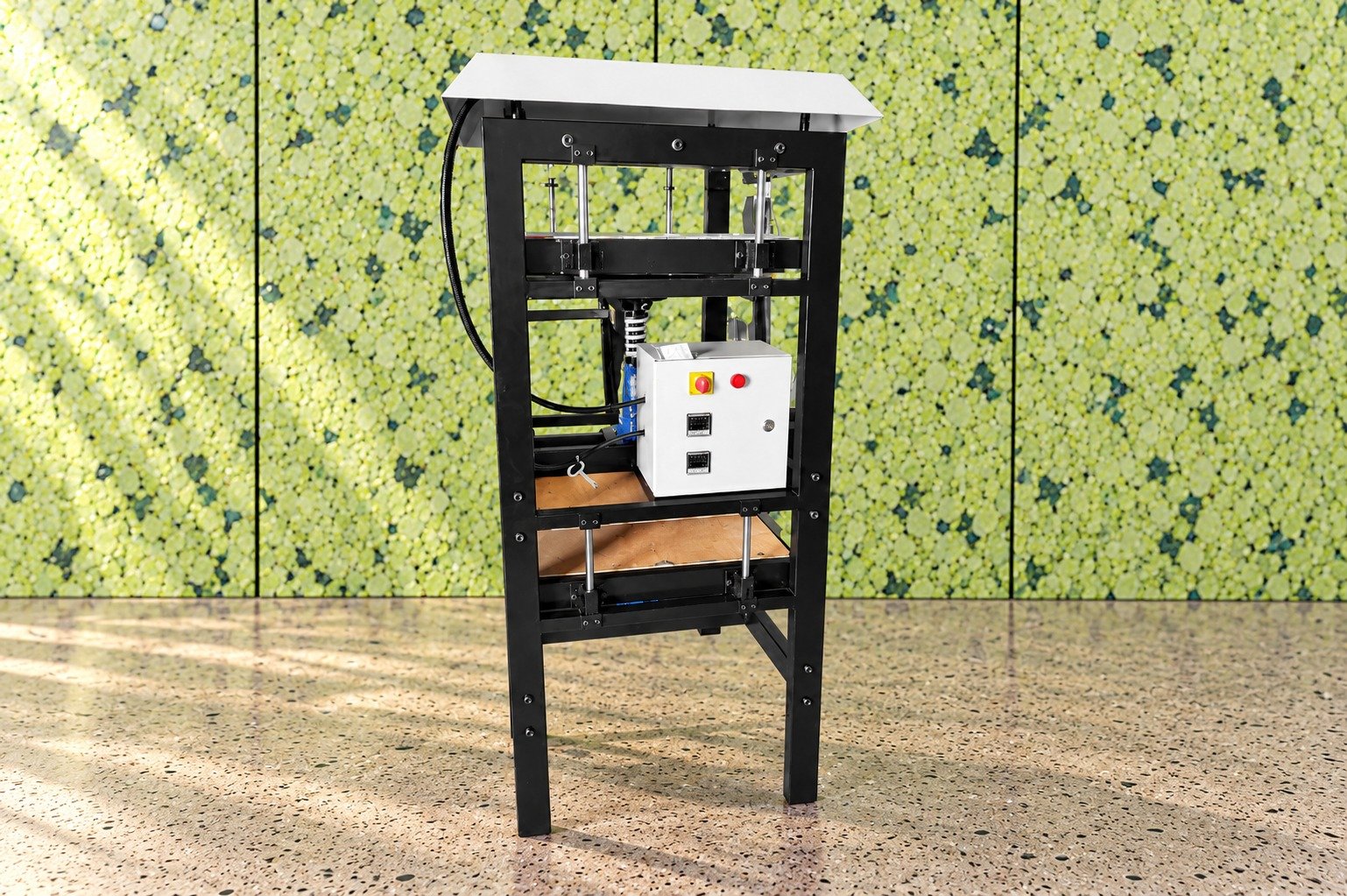

This combo unit includes a Sheet Press Machine 60 × 60 cm, Shredder Machine (V3), and Injection Machine (Manual).
|
5 ton
Sheet press jack pressure
|
3–25 mm
Sheet thickness (tested)
|
1.5 kW
Shredder power consumption
|
120 g
Injection capacity per shot
|
| Specification | Detail |
|---|---|
| Working area | 700 × 700 × 140 mm (hot press and cold press) |
| Aluminium plate thickness | 8 mm |
| Temperature controller | 2 nos. (Multispan) |
| Power supply | Single and three phase, 220 Volt |
| Initial power load | 7.5 kW (approx.) |
| Pressure | 5 ton jack |
| Supporting shafts | 4 supporting shafts with linear bearing |
| Output | 3–25 mm sheet (tested) |
| Structure | Heavy frame for stability |
| Specification | Detail |
|---|---|
| Dimensions | 600 × 300 × 1200 mm |
| Maximum production output | Depending upon the material |
| Hopper loader | M.S. fabricated hopper |
| Structure | MS fabricated heavy-duty structure made from angles and channels and covered with sheet |
| Shaft | Single-axis shaft of EN 8 blades with hardox |
| Forward and reverse control | With emergency button |
| Power supply | Single phase 220 V / three phase 400 V / 50 Hz |
| Emergency switch | A multifunction emergency switch is located on the machine and the control panel |
| Power consumption | 1.5 kW |
| Specification | Detail |
|---|---|
| Barrel | 33 mm diameter / 400 mm long |
| Plunger | 32 mm diameter / 410 mm long |
| Nozzle bore | 6 mm |
| Heater | 40 × 100 mm |
| PID | Multispan, up to 400°C, single unit |
| Weight | 55 kg |
| Package dimension | 60 × 40 × 1200 cm |
| Voltage | 220/110 V |
| Flake input | Small / Medium |
| Capacity | 120 g per shot |
| Setup | Adjustable according to the mould |
| Material | HDPE, LDPE, PP, PS, PLA, ABS |
Transforming plastic waste into sustainable value through innovative recycling.
Have questions or need assistance? Our team is here to help – don’t hesitate to reach out.
