Automatic Sheet Press System (Designed For Perfect Sheet and Fast Production)

Automatic Sheet Press System (Designed for Perfect Sheet and Fast Production)

The perfect setup to get you started recycling!

20 Perfect Sheets per day

Meet Carbon Fusion: Your Gateway to Plastic Recycling Fun!

Ready to turn your pile of old plastic into something awesome? Say hello to Carbon Fusion, the perfect desktop extrusion machine to kick off your recycling adventure in style!

Brought to you by The Carbon Fusion—a plucky Indian start-up with a serious knack for turning trash into treasure. Our team of recycling wizards (including one of the brains working since 2018 with some unique solutions) is on a mission to make High-Quality, Affordable recycling equipment inspired by the Precious Plastic Ecosystem for everyday heroes like you.

We’re not just about machines—we’re about movement. Our gear is spinning, shredding, extruding, and injecting plastic in over 35 countries across 6 continents, and we’re just getting started. Have questions? Stuck in a plastic pickle? Our friendly team is here 24/7 to guide you every step of the way.

We ship worldwide and accept payments in multiple currencies — if your country isn’t listed or you need a custom invoice, just give us a shout.

Need help or just want to chat? Click that shiny “Contact Seller” button and we’ll be right with you.

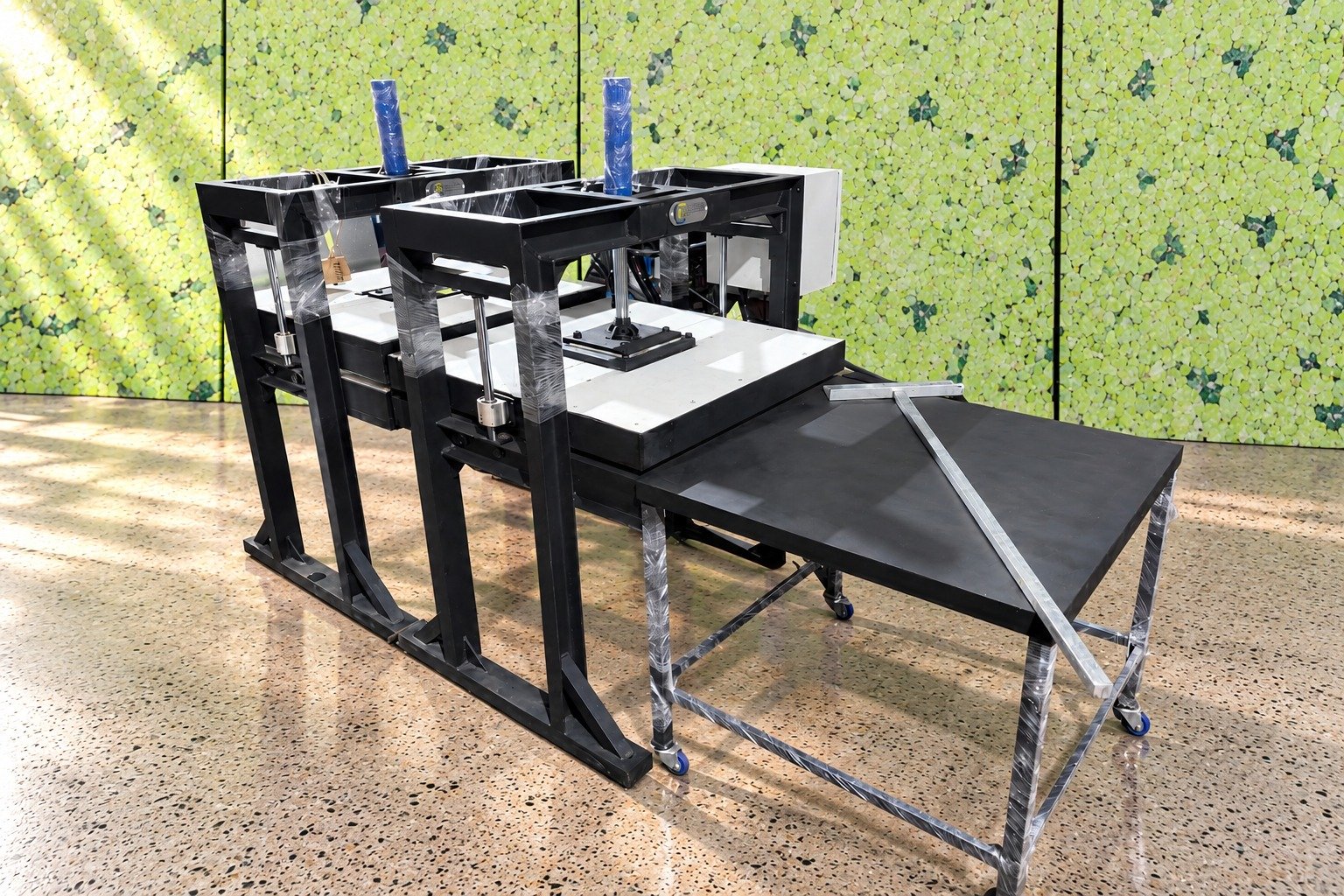

60 CM Hot Press + Cold Press Setup + Free Mould (CE Certified & Factory Made)

600 × 600 mm
Sheet size
20 Sheets
Production capacity per day
10 Ton
Motorized hydraulic press system
5 kW
Total connected load (approx.)
Quantity
Wishlist
Category:

Benefits of using this machine

  • Robust production and perfect sheet.
  • Consists of additional safety features.
  • Can process up to 30 mm thick sheets at minimum cost.
  • Low energy consumption due to its advanced heating system.
  • Low maintenance required.
  • Ideal for small spaces and medium-sized units.

Main design components

  1. Hot press with 600 × 600 mm aluminium base attached with high-density heaters and a whole supporting heavy-duty structure.
  2. Process Control Panel synchronized by one master controller: 1 no.
  3. Heavy-duty preparation table with 4 rolling wheels.

Technical data

Specification Details
Material to be processed Recycled HDPE/PP/LDPE/PS/acrylic grinded scrap
Size to be manufactured 600 × 600 mm sheets
Output capacity 20 sheets per day
Recommended mould size 600 × 600 mm top and bottom plates and frame
Maximum sheet output 20 minutes per sheet
Temperature control Advanced temperature control panel with power-saving technology
Total connected load 5 kW (approx.)

Main sheet press

  • Supporting structure MS powder-coated.
  • 8 mm top and bottom aluminium plates.
  • 9 heating plates on each side are mounted on aluminium plates to ensure equal distribution of heat.
  • 10-ton motorized hydraulic pressing system with a pressure gauge.
  • Standard 4 rolling mechanism to ensure smooth up-down rolling of the bottom plate.

Process control panel

  • Temperature controllers: PID controller with auto-tuning and dual display (Multispan).
  • MCB: reputed make MCB in line with every heating zone supply.
  • Other electrical outfits: contactors, synchronization card, standard cord wiring with PVC conduct channel framing.
  • Phase synchronizer and over-voltage protection as per CE standard.

Features

  • This machine can make multiple sheets out of HDPE/PP/PS/LDPE/ABS waste.
  • Each sheet can recycle from 2–20 kgs of plastic waste.
  • Production capacity: 20 sheets per day.
  • Water cooling system integrated in the cold press system.

What’s the deal breaker?

  1. Free worldwide shipping till the seaport.
  2. No packaging and handling cost.
