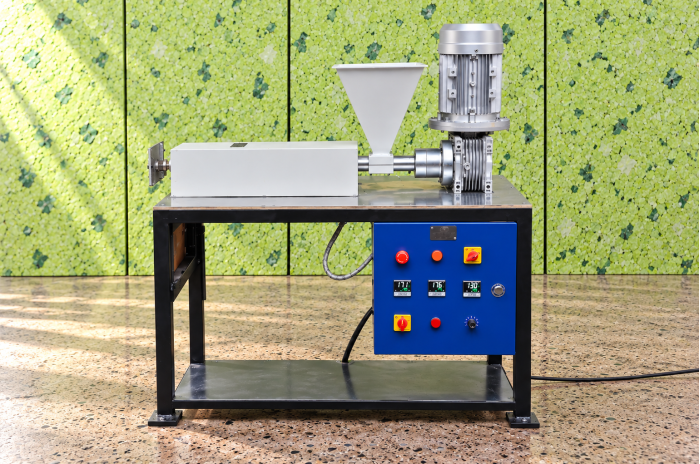

Extrusion Pro V4 Plastic Extruder

Extrusion Pro (V4) CE (EU)

The perfect desktop Extrusion to get you started recycling!

Meet Carbon Fusion: Your Gateway to Plastic Recycling Fun!

Ready to turn your pile of old plastic into something awesome? Say hello to Carbon Fusion, the perfect desktop extrusion machine to kick off your recycling adventure in style!

Brought to you by The Carbon Fusion—a plucky Indian start-up with a serious knack for turning trash into treasure. Our team of recycling wizards (including one of the brains working since 2018 with some unique solutions) is on a mission to make High-Quality, Affordable recycling equipment inspired by the Precious Plastic Ecosystem for everyday heroes like you.

We’re not just about machines—we’re about movement. Our gear is spinning, shredding, extruding, and injecting plastic in over 35 countries across 6 continents, and we’re just getting started. Have questions? Stuck in a plastic pickle? Our friendly team is here 24/7 to guide you every step of the way.

We ship worldwide and accept payments in multiple currencies — if your country isn’t listed or you need a custom invoice, just give us a shout.

Need help or just want to chat? Click that shiny “Contact Seller” button and we’ll be right with you.

Category: Machines

Extrusion Machine with Upgrades

Design parameters with standard supply

790 mm / 300 / 3 HP Smooth Screw extruder – HDPE/PP/LDPE/PS/ABS/PLA.
Process Control Panel synchronized by one master control: 1 no.

20 Kg/Hr

Maximum extrusion output

5 kW

Total connected load (approx.)

Up to 40 ft

Manufactured product length

3 HP

Screw drive specification

Specific data

Specification	Details
Material to be processed	Recycled HDPE/PP/LDPE/PS granulated scrap
Size to be manufactured	Up to 40 ft length
Screw RPM	14
Screw size	L: 790 mm, OD: 30 mm
Barrel size	L: 578 mm, OD: 45 mm, ID: 30 mm
Maximum extrusion output	20 Kg/Hr
Extrusion control	Advanced extrusion control with optimized workflow to fill moulds
Total connected load	5 kW (Approx.)

Main extruder

Barrel type: Smooth feed barrier type high-speed design.
Screw barrel material: EN 41B Nitro alloy steel duly gas nitrided.
Gear reducer: Worm gearbox with heavy-duty thrust bearing.
Main motor: AC motor, 3 HP, with frequency drive.
Barrel heating zones: 3 heating zones (ceramic band heater with energy saving).
Barrel heating loads: 4 kW.
Hopper loader: M.S. fabricated hopper.
Structure: MS fabricated heavy-duty structure made from angles and channels and covered with sheet.

Process control panel

Temperature controllers: PID controller with auto-tuning and dual display.
MCB: Reputed make MCB in line with every heating zone supply.
Other electrical outfits: Amp meter, contactors, synchronization card, standard cord wiring with PVC conduct channel framing.
Phase synchronizer and over-voltage protection as per CE standard.

Benefits of using this machine

Robust production.
Consists of additional safety features.
Can make up to 10–10 foot beams.
Low energy consumption due to its advanced heating system.
Low maintenance required.
Ideal for remote locations and small spaces.

What’s the deal breaker?

Free shipping till the seaport.
Free packaging and handling charges.

Items included

Beam mould 60 × 30 × 2000 mm.

We provide virtual sessions to run the machine efficiently. We also provide complete technical support, installation, and virtual training for free upon receiving the machine.
