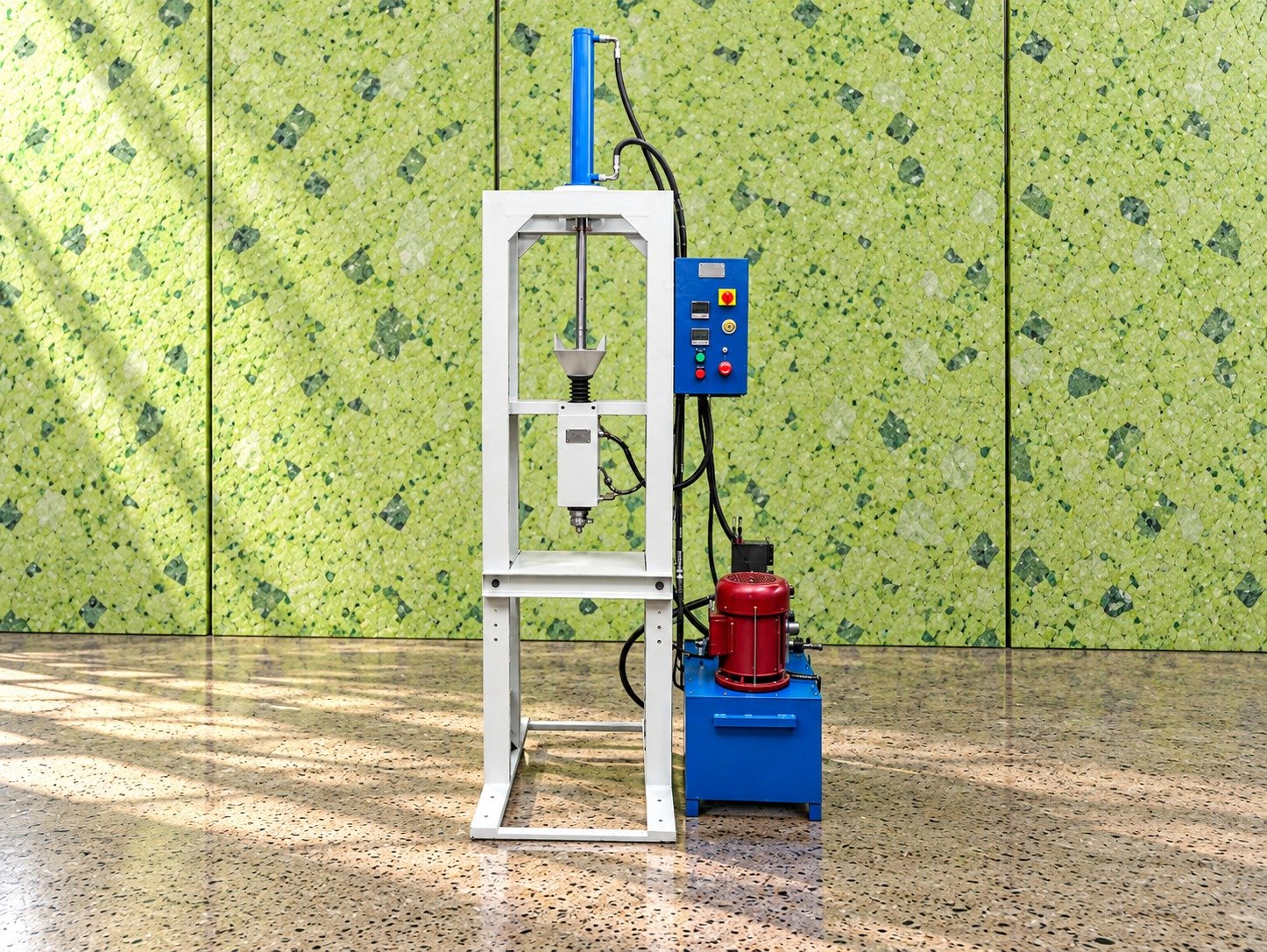

Hydraulic Injection Machine. Material to be processed: Recycled HDPE/PP/LDPE/PS. Customization is available as per your need.
|
5 Ton
Main jack capacity
|
450 mm
Hydraulic stroke
|
3 zones
Barrel heating, ceramic band heater
|
2 HP
Main motor
|
Hydraulic Injection Machine. Material to be processed: Recycled HDPE/PP/LDPE/PS. Customization is available as per your need.
|
5 Ton
Main jack capacity
|
450 mm
Hydraulic stroke
|
3 zones
Barrel heating, ceramic band heater
|
2 HP
Main motor
|
| Hydraulic injection 2 HP Injection Molding Machine – HDPE/PP/LDPE/PS |
Barrel size L- 450 mm, OD-40mm, ID- 30mm |
| Barrel type Smooth Feed Barrier type high speed design |
Barrel material EN 41B Nitro alloy steel duly gas nitride |
| Barrel heating 3 Heating Zones (Ceramic Band Heater with Energy Saving). Barrel Heating Loads: 3 kW. |
Main jack Capacity 5 Ton. Hydraulic stroke 450 mm. |
| Main motor AC Motor 2HP |
Injection rod Smooth injection rod tip to push the material into barrel nozzle |
| Mould filling Auto Mould filling station. Enclosed Hydraulic system and mold filling station. |
Control Process Control Panel synchronized by one master control. Advanced extrusion control with optimized workflow to fill molds. |
| Total connected load 4-5* kW (Approx.) |
Customization Available as per your need |
| Specification | Detail |
|---|---|
| Material to be processed | Recycled HDPE/PP/LDPE/PS |
| Hydraulic stroke | 450 mm |
| Main jack capacity | 5 Ton |
| Barrel size | L- 450 mm, OD-40mm, ID- 30mm |
| Control | Advanced extrusion control with optimized workflow to fill molds |
| Total connected load | 4-5* kW (Approx.) |
| Specification | Detail |
|---|---|
| Barrel type | Smooth Feed Barrier type high speed design |
| Barrel material | EN 41B Nitro alloy steel duly gas nitride |
| Injection rod | Smooth injection rod tip to push the material into barrel nozzle. |
| Main motor | AC Motor 2HP |
| Barrel heating zones | 3 Heating Zones (Ceramic Band Heater with Energy Saving) |
| Barrel heating loads | 3 kW. |
| Hopper loader | M.S. Fabricated Hopper |
| Structure | MS fabricated heavy-duty structure made from Channels and Covered with sheet |
| Hydraulic system | Enclosed Hydraulic system and mold filling station. |
